VAUGHN IRRIGATOR

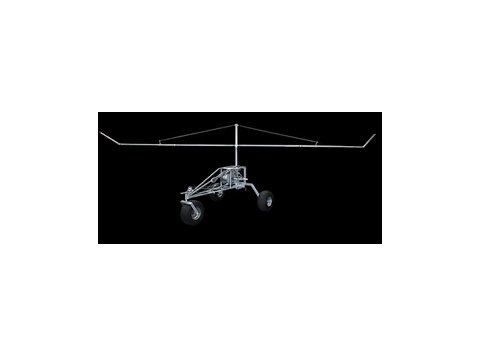

7 metre Boom, 300m x 4mm Cable* It has 300 metres of cable, 7 metre galvanised arms, simple mechanical operation with five easy to adjust speeds. All pivot points are housed in greased bearings, no gear box or water winch to cause trouble, rust free polyethylene wheels and heavy duty reinforced galvanised frame. Ideal for watering up to 30 acres of crops and pastures or effluent distribution. Features Suitable for 10 - 20 Acres 7 metre boom (Optional 11m extention kit) 300 metre cable run Throws up to 36 metres Low centre of gravity Heavy duty components Ideal for both effluent and water 10 – 90 psi 1000 – 13 000 gallons per hour Optional front steer assembly Optional extras available under the "Spare Parts" tab. Extra cable to 300 metres Effluent nozzles Steering Arm Twin Front Steer 50 & 63mm heavy duty layflat & camlocks Automatic shut off valve Bolt on hose reel Low pressure Sumpmaster cam 11 metre boom extension Custom maize extension Stainless steel water ways

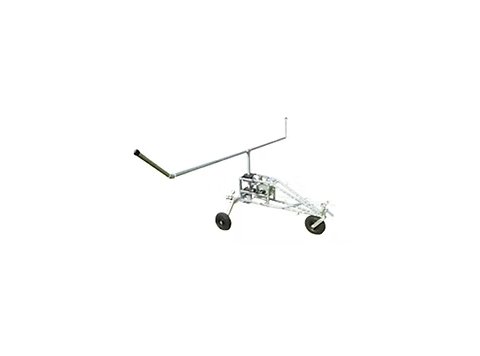

3.2 metre Boom, 100m x 3mm Cable* The Junior Vaughan Irrigator is an ideal irrigator for small acreage or large lawns. It is perfect for all types of horticulture and open fields. It operates in the same way as its big brother the Standard Irrigator. Purely mechanical, it has no gearbox, hydraulics or water winch so most of the normal irrigator problems have been removed. The Junior has been scaled down in size but not performance. It has a 100m run and throws up to an impressive 25m. The Junior has 4 speeds. This little irrigator is a real asset to any farm or garden. An automatic shut off valve that will shut the water off at the end of the pass is available as an extra.
